4 051 Ft

Operation type(CTPT)
Medium
Insert mounting style code(IFS)
2
Fixing hole diameter(D1)
5.156 mm
Insert size and shape(CUTINT_SIZESHAPE)
DN1506
Cutting edge count(CEDC)
4
Inscribed circle diameter(IC)
12.7 mm
Insert shape code(SC)
D
Cutting edge effective length(LE)
14.3038 mm
Corner radius(RE)
1.1906 mm
Hand(HAND)
N
Grade(GRADE)
4325
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCN+Al2O3+TiN
Insert thickness(S)
6.35 mm
Clearance angle major(AN)
0 deg
Weight of item(WT)
0.0137 kg
Release date(ValFrom20)
9/24/13
Release pack id(RELEASEPACK)
13.2

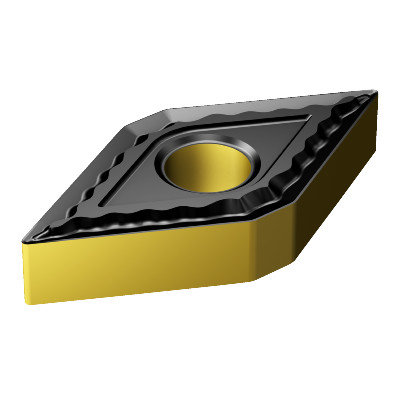

Sandvik DNMG 150612-QM 4325 443-QM
